The H31 Stable Laser Source serieshttps://www.hhistar.com/ is a professional fiber optic testing solution powered by a high-performance microprocessor and a 2.8-inch color LCD display. With advanced thermoplastic molding, the device offers a durable, compact, and ergonomic design.

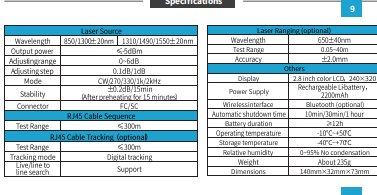

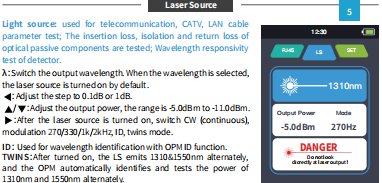

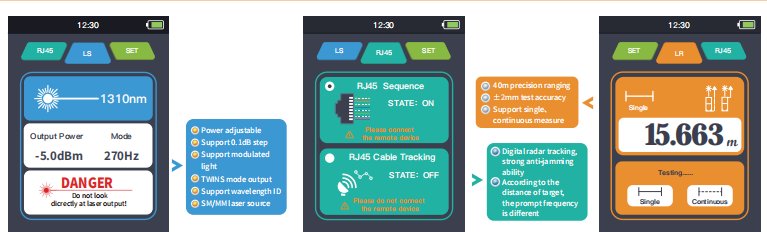

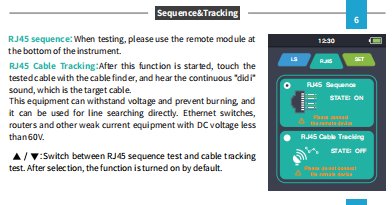

Supporting both SM and MM modes, wave ID, and TWINS mode output, the H31 delivers stable and adjustable power levels from -5.0dBm to -11.0dBm. Standard configurations include RJ45 sequence testing and a flashlight, while optional modules like RJ45 tracking, laser ranging (up to 40m), and Bluetooth connectivity extend versatility for different environments.
The H31 is widely used in:
Optical cable construction and maintenance
Optical fiber communication networks
Optical cable sensing projects
CATV and LAN cable parameter testing
Its precise measurement capability ensures accurate insertion loss, return loss, and isolation testing of passive optical components, making it the go-to tool for technicians and network engineers worldwide.
