The Histar 6200 OTDR series is a 7-inch capacitive touchscreen optical time domain reflectometer that integrates 9 key functions including OTDR, optical power meter, visual fault locator, and Ethernet testing. With short dead zones, high dynamic range, and intelligent auto-test capabilities, it provides accurate and efficient fiber testing for construction, maintenance, and troubleshooting of telecom networks.
Key Features
9-in-1 Multi-Function Integration
• English: Integrates OTDR, optical power meter, visual fault locator, Ethernet testing (Ping, PPOE, cable tracing), and mobile app wireless control.
High Precision OTDR Performance

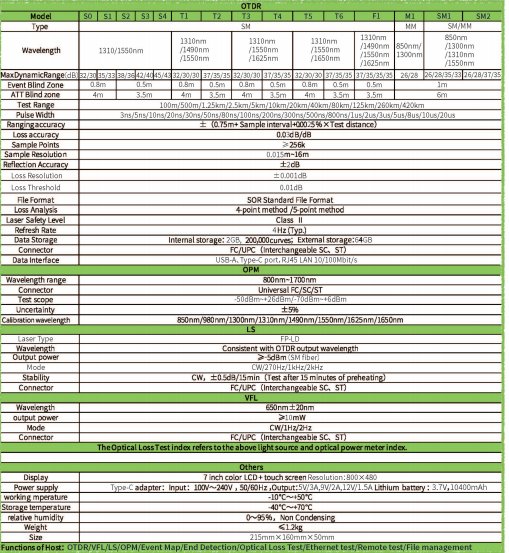

• English: Maximum dynamic range of 45dB, event dead zone of 0.5m–0.8m, attenuation dead zone of 3.5m–6m, measurement range from 100m to 420km.
Large Capacity and Long Measurement Range
• English: 2GB internal memory storing over 20,000 test results, supporting long-distance backbone and metro network testing.
Rich Interfaces and Smart Control
• English: Multiple interfaces for versatile connections, mobile app remote control for convenient operation and data management.
Rugged Design for Field Applications
• English: Designed for harsh field environments, ensuring stable performance in fiber construction and emergency repair projects.
