FM2600

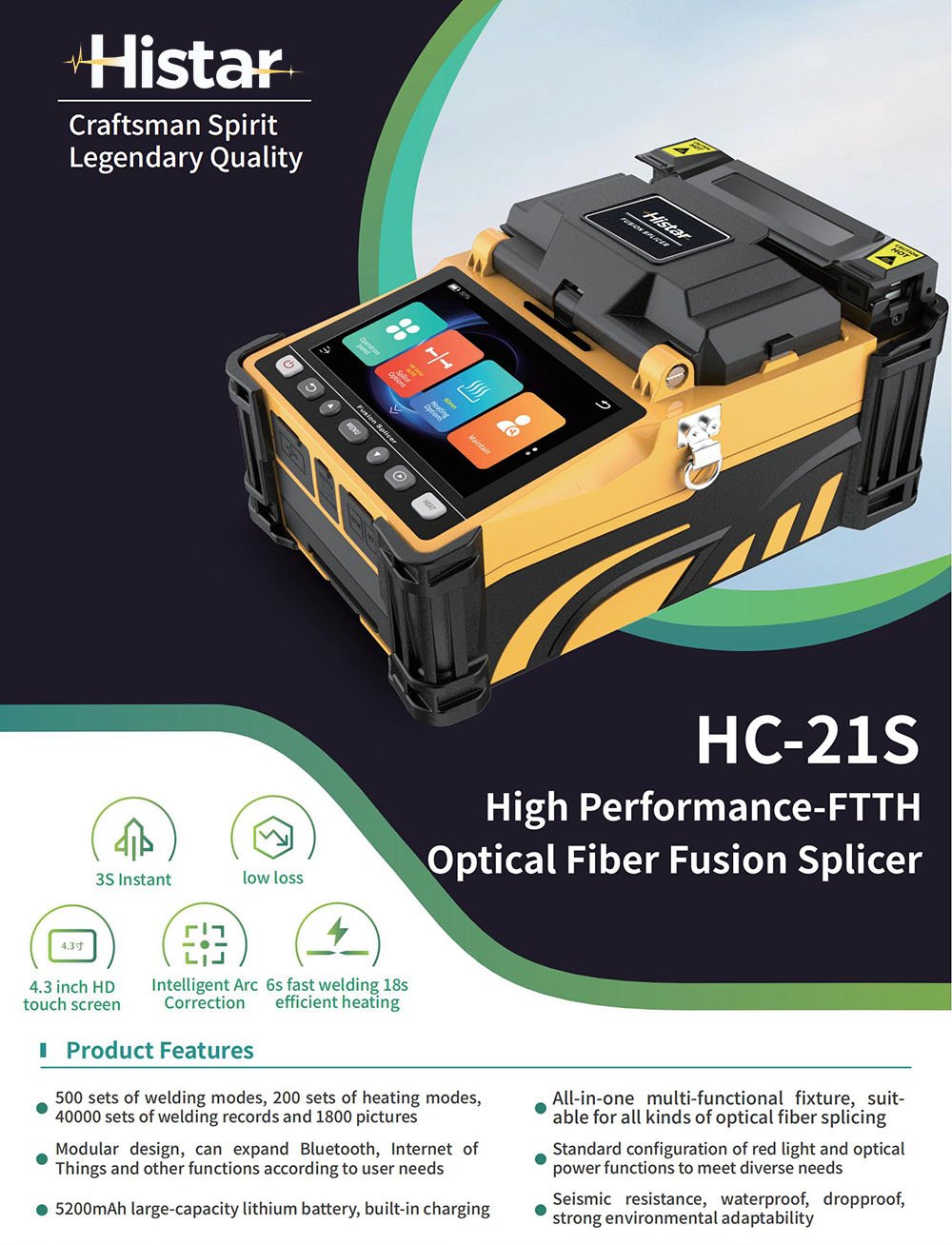

Product Features:

• 500 sets of welding modes, 200 sets of heating modes,40000 sets of welding records and 1800 pictures.

• Modular design, can expand Bluetooth, Internet of things and other functions according to user needs.

• 5200mAh large-capacity lithium battery, built-in charging.

• All-in-one multi-functional fixture, suit-able for all kinds of optical fiber splicing.

• Standard configuration of red light and optica power functions to meet diverse needs.

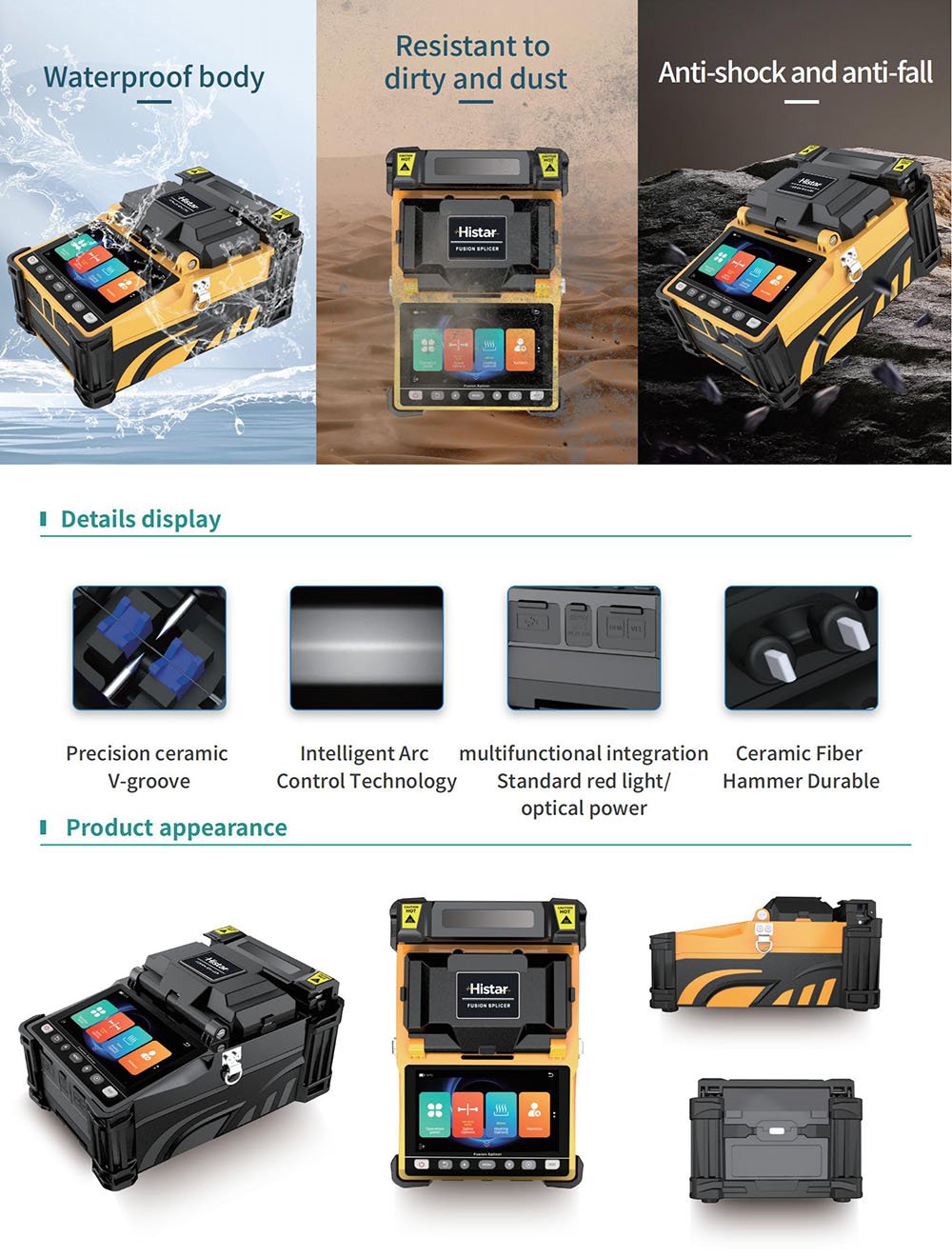

• Seismic resistance, waterproof, dropproof,  strong environmental adaptability

Product Details

Specifications

MotorFour motors
Display magnification400times
Discharge correctionReal time Discharge Correctio(Manually available)
Extension module(Optional)OPM/VFL
Fiber holderThree-in-one multi-function fiber holder,Support SOC fixtures (optional)
IlluminationLED lighting, assisting night construction
Applicable fiber typeInclude G651、G652、G653、G655、G657
Fiber cut length8-16mm
Splice lossSM:0.02dB,MM:0.01dB,NZ:0.03dB,NZDS:0.04dB
Electrode life≥5000times
Splice mode500 preset welding programs
Heat mode200 preset heating programs
Automatic heatingSupport
Splice timeFast 6 seconds, typical 8 seconds
Heat timeStandard heating time 18 seconds
Return loss≥60dB
Splice protector20~60 mm,supports SOC (optional)
Fiber tensite test forceTensileforceis1.96 N~2.1 N
StorageCan store about 1800 images and 40000 sets of data
InterfaceGUl graphical operator interface with graphical maintenance navigation
Battery capacity5200 mAh, built-in charging
languageThere are multiple display languages for users to choose
AltitudeCan work at an altitude of 0 meters to 5000 meters
Temperature -20℃~+50℃
Humidity0~95%(no condensation)
Storage conditionsRelativehumidity0~95%,-20~60℃
Input/OutputAC100~240V, DC15~19V
Boot time3 seconds fast boot
Display4.3-inch high-definition capacitive touch screen, button/touch dual control
InterfaceType-C、USB2.0(can be used to export data)
Size205mm*134mm*102mm
