HFS-100

HFS-100

1.Please store the product in a dry and clean place at ordinary temperature.

2.Don't wet the product, hit it violently, or wipe the rubber pad with alcohol.

3.Please clean the dirt on pressure board regularly.

4.Constantly clean the collector and ensure no dust and oil dirties inside.

Inquiry Now

Add To Cart

Specifications

Product Name	Fiber Cleaver
Applicable Bare Fiber Diameter	125μm
Applicable Fiber Core	Singe Core
Fiber Cutting Length	5~20+mm
Average Cutting Angle	≤0.5°
Blade Life	≥48000 Times (1000 Times16 Position3 Adjustable Height)
Blade Type	Φ22(mm)φ4(mm)H:2(mm)
Dimension	91W82D51H(mm)
Weight	231g
Fiber Fixture	Four In One Fixture
Standard	Collector\Box\Instruction Manual\Allen Key

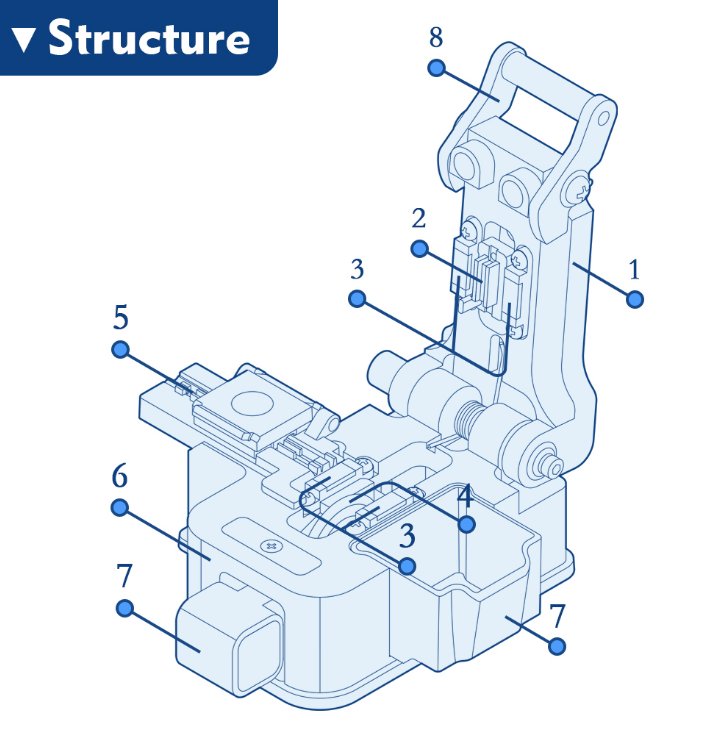

Optional Accessories	Multifunctional Fixture	1.Cover Plate 2.Block 3.Rubber Pad 4.Blade 5.Fiber Fixture 6.Base 7.Slider 8.Pressure bar 9.Collector

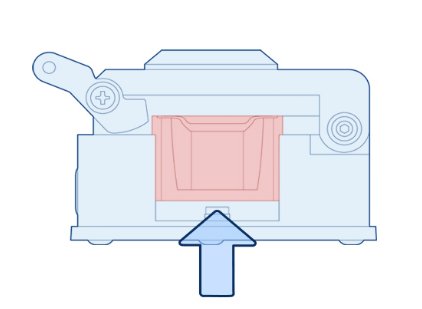

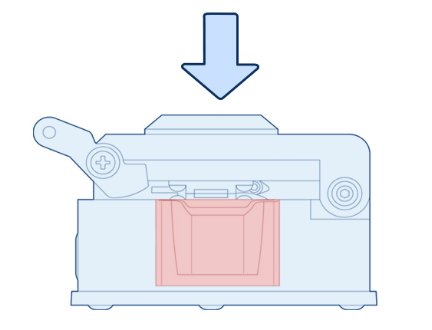

Press the cover down	Lift the collector up with a little force,then can easily remove the collector

Blade Height Adjustment Method

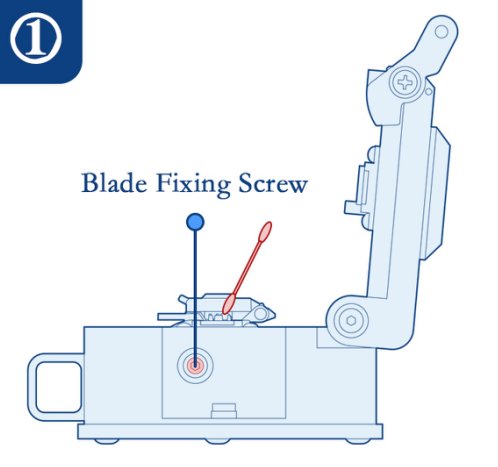

1.Loosen the Blade Fixing Screw with an allen key

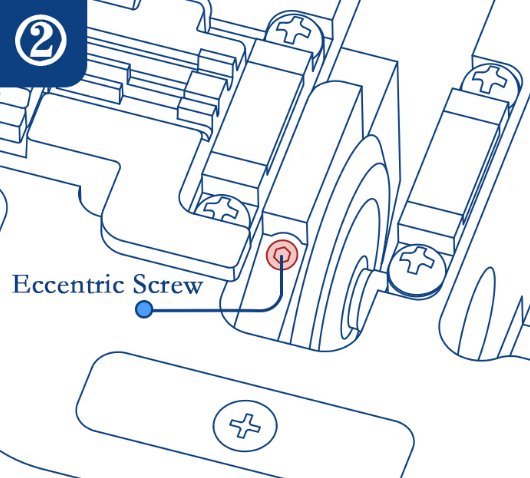

2,Slightly adiust the Eccentric Screw, clockwise to

lower blade, counterclockwise is to lift blade heigh

3.Put the fiber which remove coating layer into fixt-ure,

press the cover of fixture, push the block back and forth

and check if the blade touch the fiber slightly.Adjust the

proper position and fix the screw,

Blade Position Changing Method

Replace Blade

Use an allen key, loosen the blade fixing screw.

Press the blade scale with a cotton swab and turn the blade countercl-ockwise to a new position.

1.Loosen Blade Fixing Screw, remove the old blade with the plastic tweezers, install a new blade

2. Adjust blade height according the method of 'Blade Height Adjusting Method'.

Cutting Step

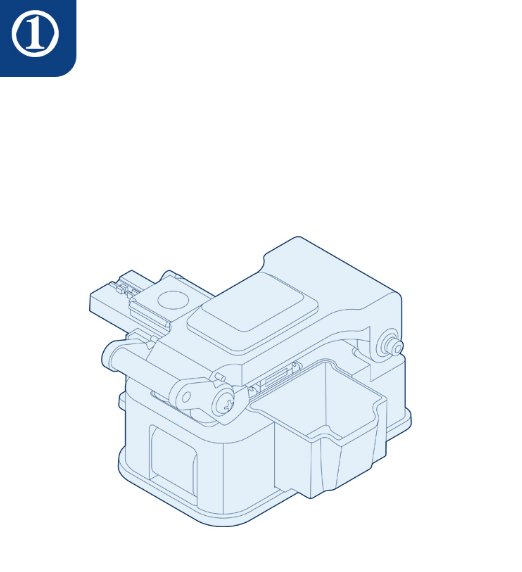

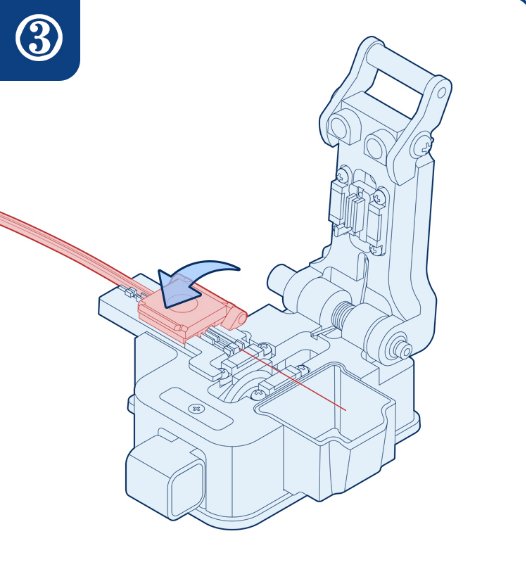

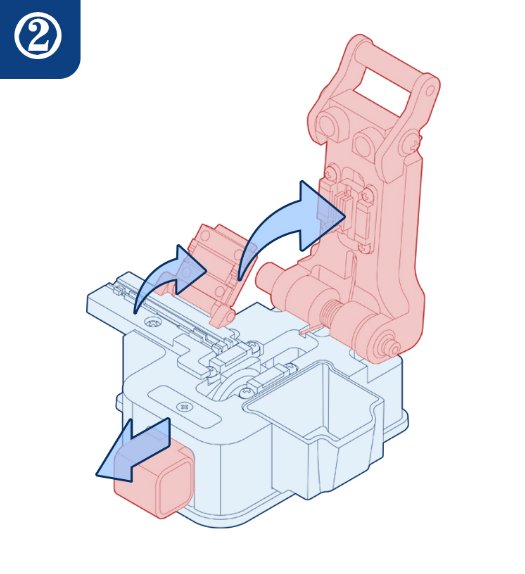

Initial state of the cleaver.	Open the cover plate and fixture cover the slider will automatic springback.	Put the fiber in.

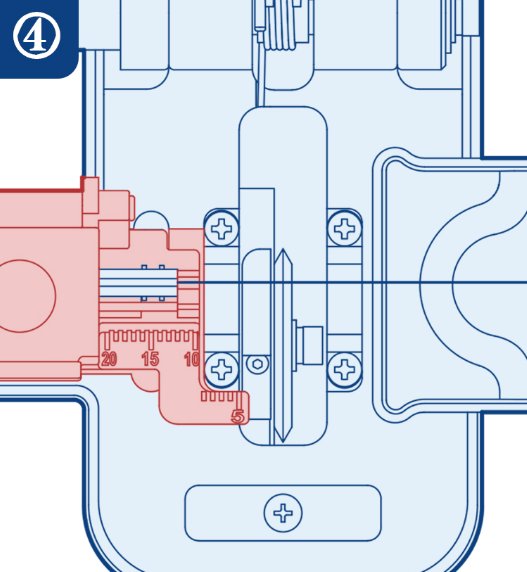

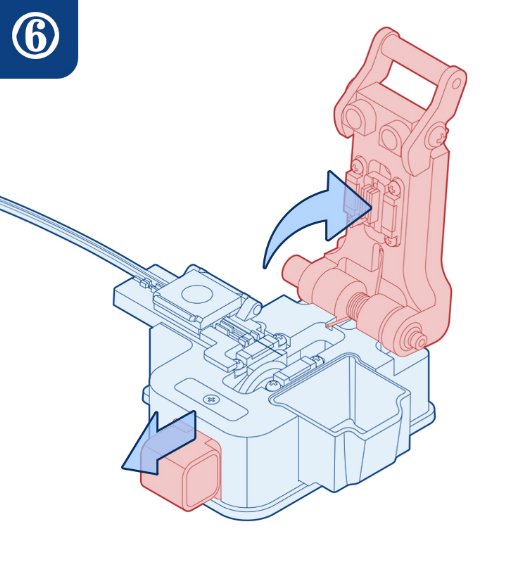

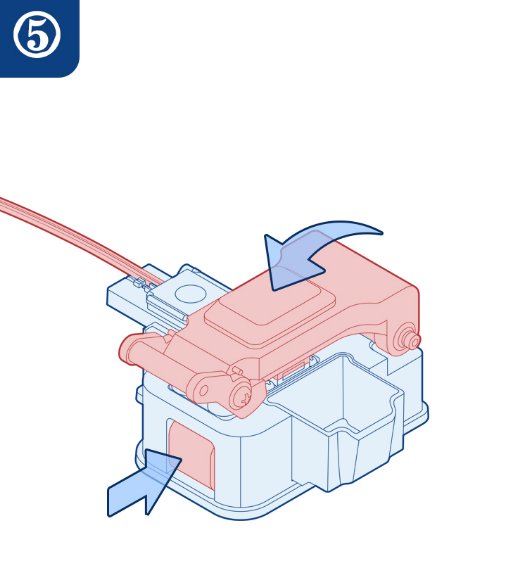

Align the scales and make sure the fiber in horizontal state.	Close the cover and push the block back to complete the cut.	Open the fixture cover take out the fiber.
