ME-2031

This product is designed and developed with full consideration of safety. To ensure safe use of this product, please be sure to read the precautions in this manual and strictly abide by them. Please keep them after reading.

* Since disassembling and oiling the machine body may cause malfunctions, they must not be implemented.

* The fiber optic cleaver is a precision machine. If it is knocked or dropped (subjected to strong impact), it may damage the characteristics of the cleaver and may also cause personal injury. Please be careful when using it.

* The optical fiber and fiber optic debris are very thin and sharp. If they pierce your fingers or enter your eyes, they will cause injury.

* Therefore, please be careful when operating. For safe operation, please wear protective glasses.

* Please dispose of the fiber optic debris in a dedicated waste place separated from ordinary garbage.

* The blade installed on the machine body is very sharp. Never touch it with your hands to avoid injury.

* Please note that if the opening and closing rod of the optical fiber pressure plate cover is impacted, it will also cause malfunctions.

* If the opening and closing rod is damaged, the performance of the cleaver may be reduced.

* If the machine malfunctions abnormally, please stop using it. Do not disassemble or modify it, and contact the dealer.

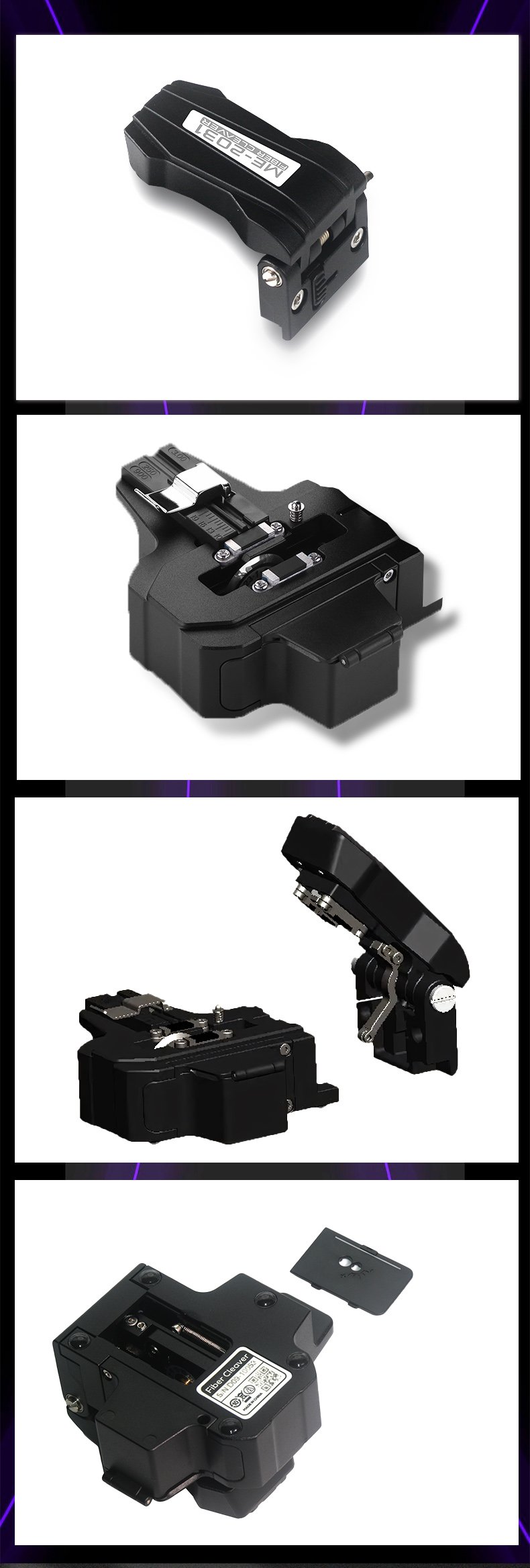

Product Details

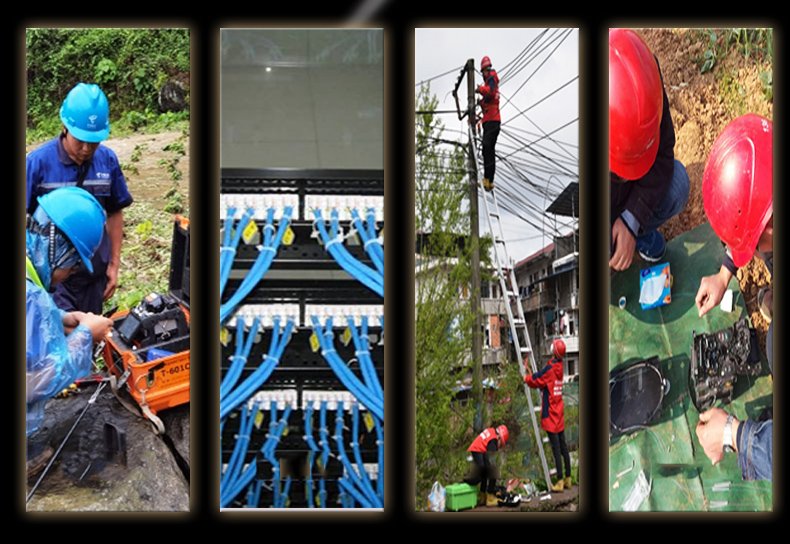

Multi-field application

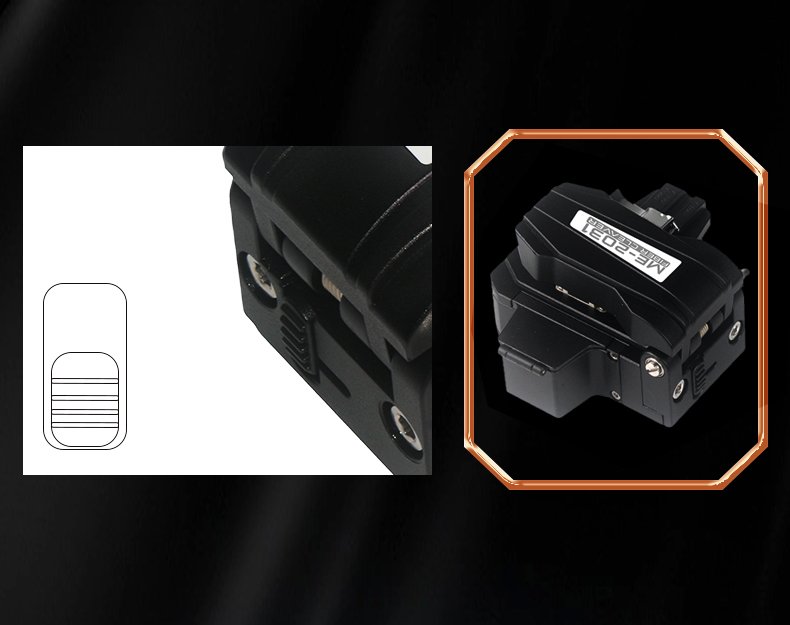

New upgraded lock

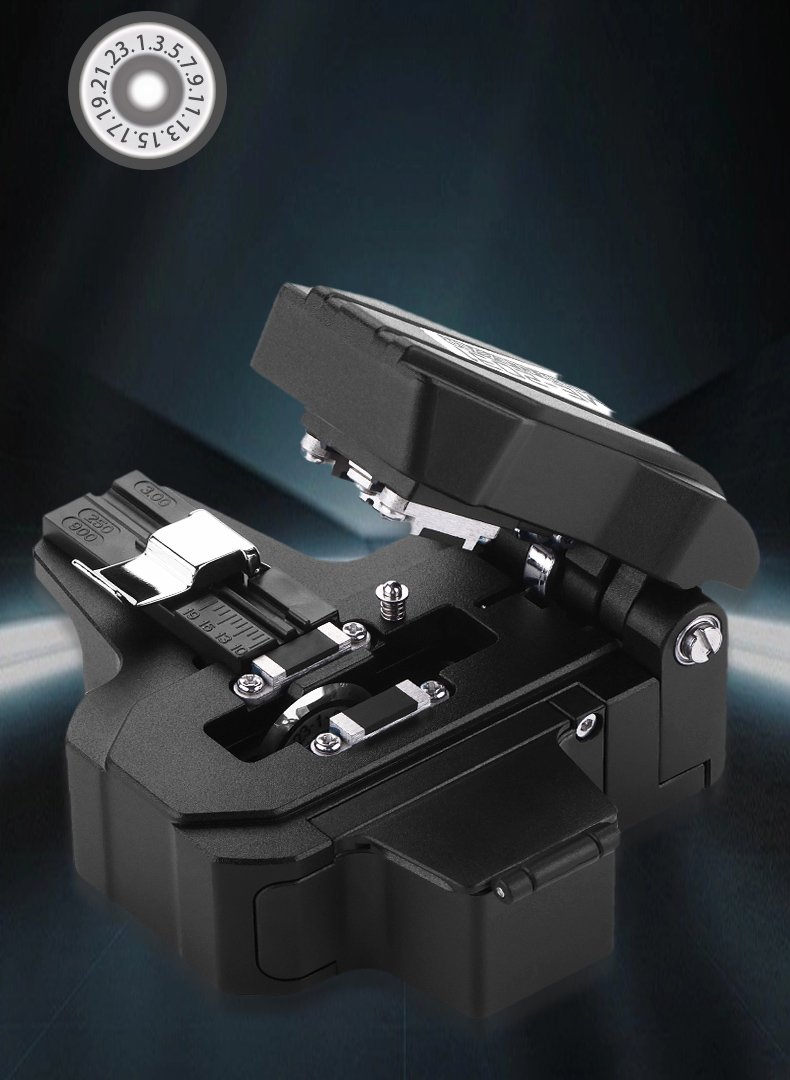

Long-lasting blades

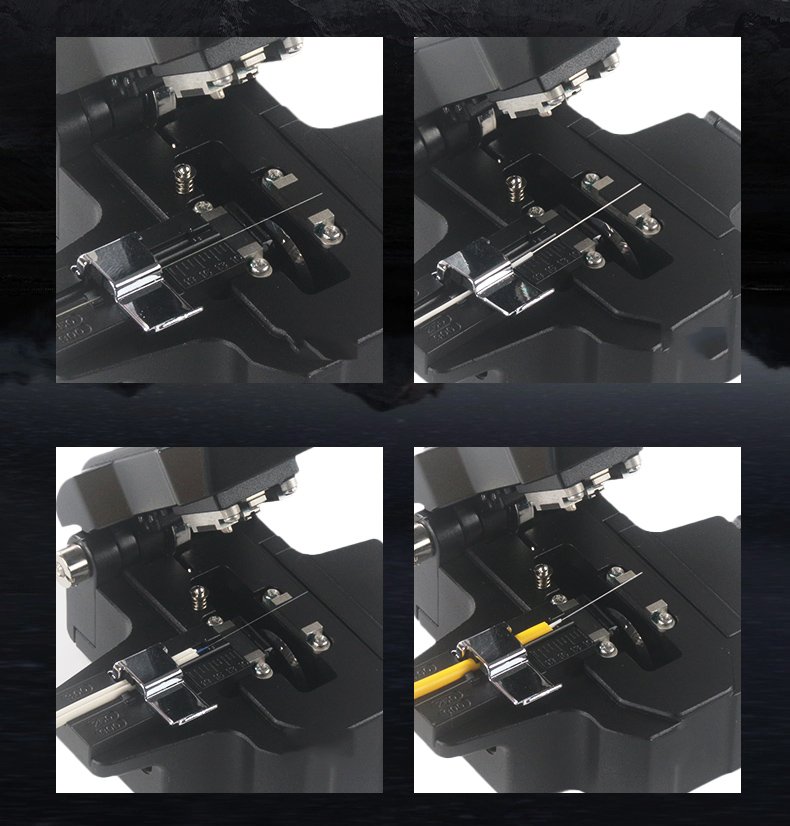

Multifunctional clamp

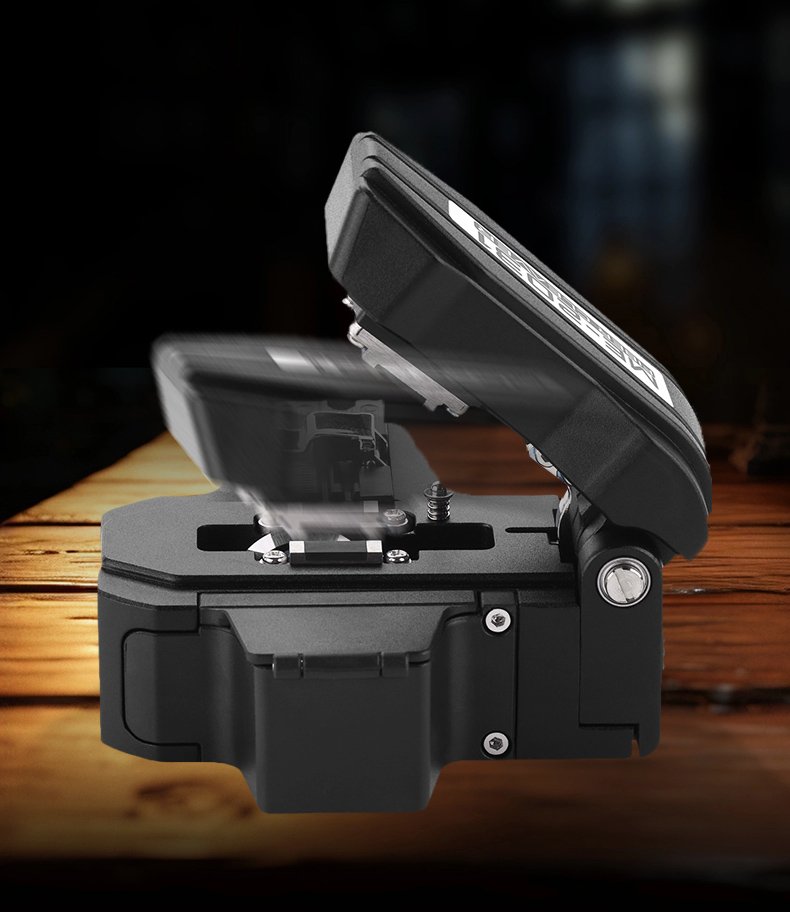

Press-to-cut



Adjustable structure

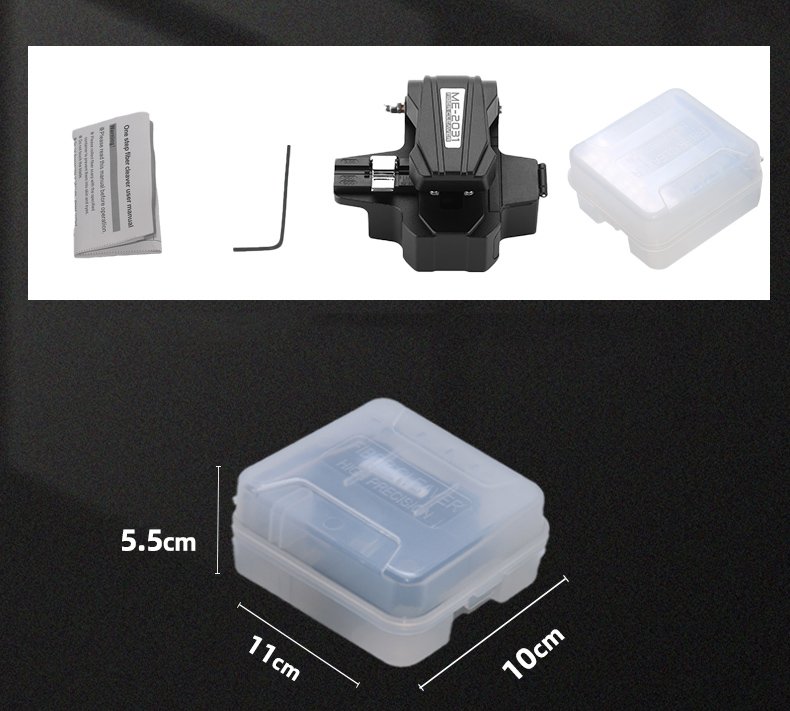

Product configuration


Specifications

Adapt to optical fiberQuartz optical fiber (special fixture is required when cutting ribbon optical fiber)
Applicable fiber typeφ0.25/φ0.9/φ3.0/3.0*2.0mm
Applicable bare fiber core diameter125μm
Cutting fiber length9-24mm
Dimensions85(W)×75(D)×45(H)mm
Product WeightAbout 205g
Cutting Angle≤0.6°
Blade lifeAbout 48,000 times
Blade specificationsOuter diameter 20.0*Inner hole 4.0*Thickness 2.0mm
