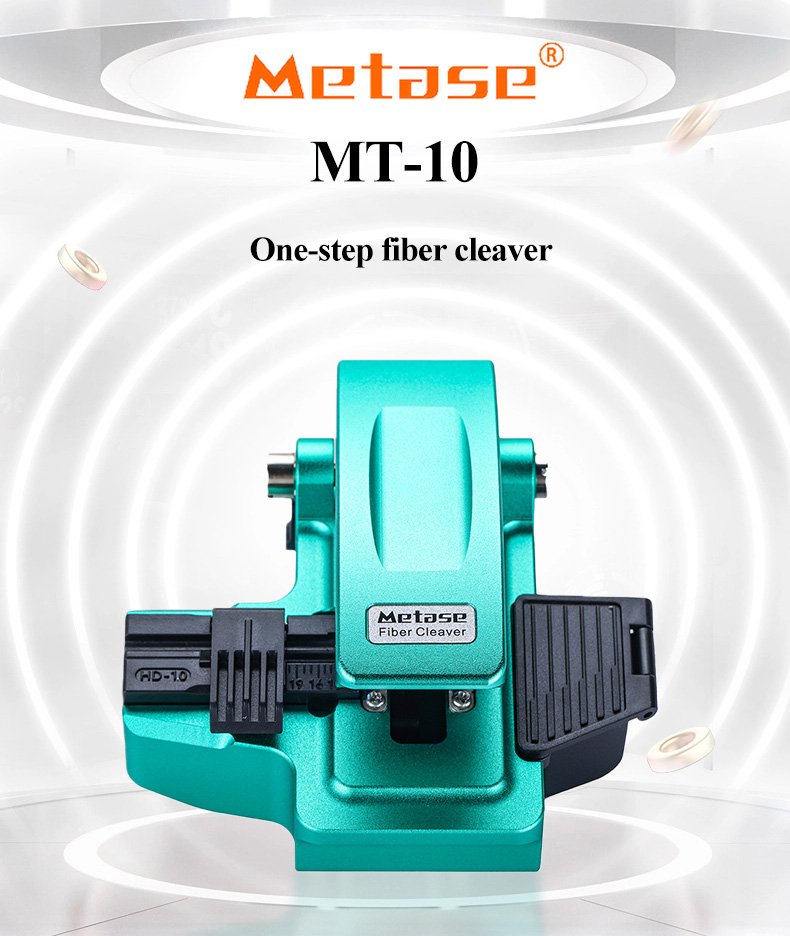

MT-10

This product is designed and developed with full consideration of safety. To ensure safe use of this product, please be sure to read the precautions in this manual and strictly abide by them. After reading, please keep it in a place where it is easy to access.

* Since disassembling and oiling the body may cause malfunctions, it must not be implemented.

* The MT-10 fiber cleaver is a precision machine. If it is knocked or dropped (subjected to strong impact), it may damage the characteristics of the cleaver and may also cause personal injury. Please be careful when using it.

* The optical fiber and fiber optic debris are very thin and sharp at the tip. Piercing your fingers and entering your eyes will cause injury. Therefore, please be careful when operating. For safe operation, please wear protective glasses.

* Please dispose of the fiber optic debris in a dedicated waste place separated from ordinary garbage. * The blade installed on the body is very sharp and must not be touched by hand to avoid injury. * Please note that if the fiber optic pressure plate cover opening and closing rod is impacted, it will also cause malfunctions. If the opening and closing rod is damaged, the performance of the cleaver may be reduced.

* If the machine fails abnormally, please stop using it. Do not disassemble or modify it, and contact the dealer.

Product Details


Specifications

BrandMetase
ModelMT-10

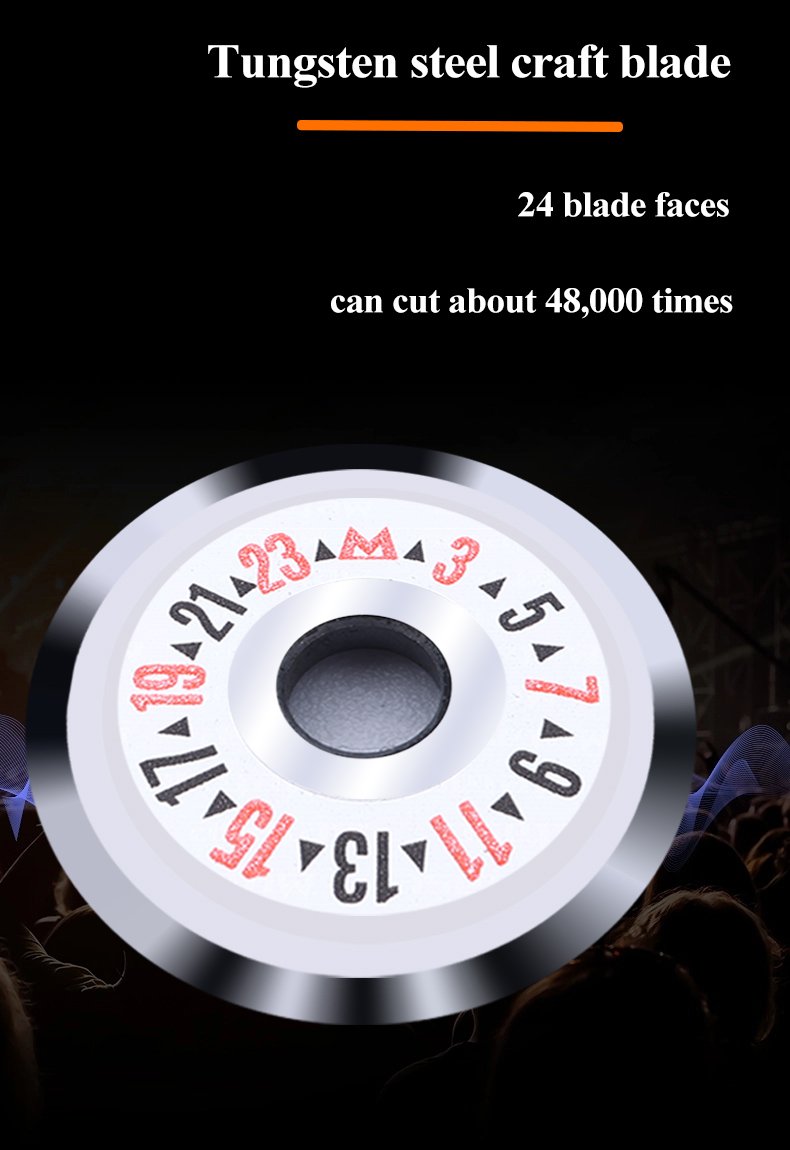

Blade specificationsOuter diameter 20.0*Inner hole 4.0*Thickness 3.0mm

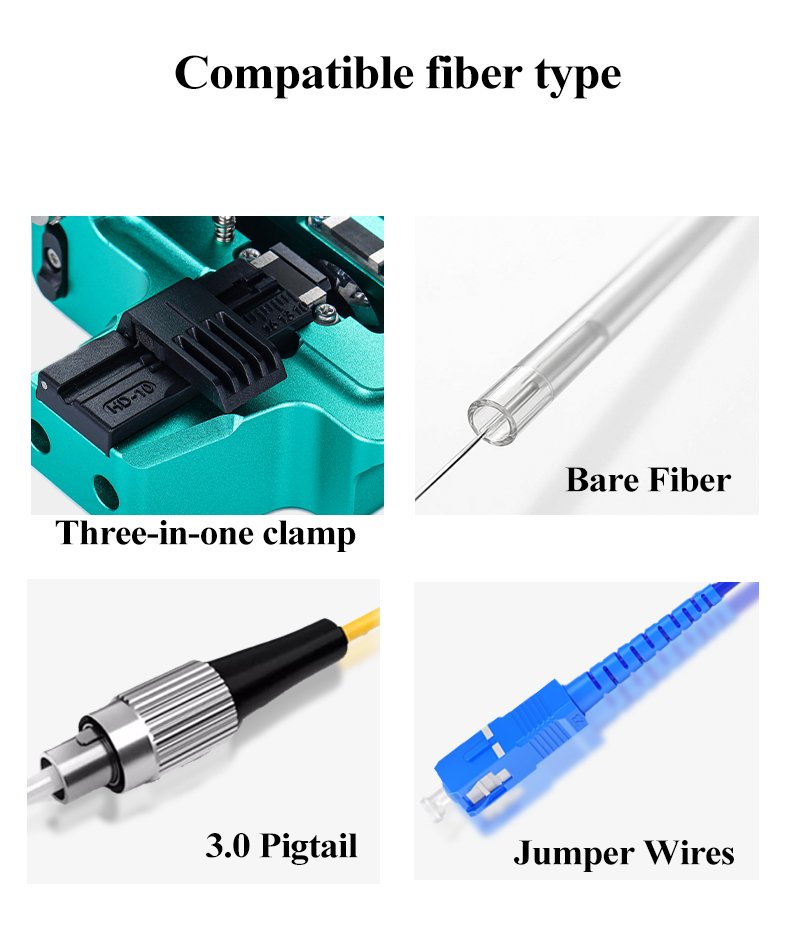

Applicable  fiber  typeφ00.25/Φ0.9/φ3.0/3.0*2.00mm
Applicable bare fiber core diameter125μm
Cutting fiber length9~24mm
Dimensions60.5*20.5*30mm
